MYIR | Solutions

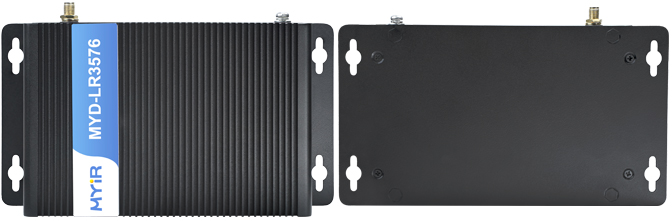

MYD-LR3576-B IPC Box

The MYD-LR3576-B IPC Box integrates the Rockchip RK3576 processor for edge computing applications, offering a compact and rugged solution for AI-driven systems. With 8GB LPDDR4X memory, 64GB eMMC storage, and a wide range of connectivity options including USB 3.0, Gigabit Ethernet, WiFi/Bluetooth, and 4K display support, this box provides powerful performance and flexibility for industrial and multimedia applications. The fanless design ensures silent operation, while Linux, Debian, and Android OS support offers seamless customization..

  • Detail
  • Special Features
  • Specification

The MYD-LR3576-B IPC Box is an advanced industrial personal computer (IPC) solution designed for edge computing and multimedia applications. Integrating the Rockchip RK3576 SoC, it provides high-performance processing with 6 TOPS of NPU and advanced GPU capabilities, supporting AI video analytics, industrial IoT, and machine vision applications.

This compact and rugged system includes 8GB LPDDR4X memory, 64GB eMMC storage, and a microSD card slot for expandable storage. The dual Gigabit Ethernet and WiFi/Bluetooth ensure fast connectivity, while the USB 3.0 ports support various peripherals. Additionally, the 4K display output via HDMI and Mini DisplayPort makes it perfect for applications requiring high-resolution visual outputs.

With Linux, Debian, and Android OS support, the MYD-LR3576-B IPC Box comes with complete source code for u-boot, kernel, and driver development, making it an ideal solution for developers looking to build custom AI-powered systems. The fanless design ensures silent operation, making it suitable for environments where noise is a concern.

  • High-Performance Processing

    • Powered by the Rockchip RK3576 Octa-core processor, featuring 4x Cortex-A72 cores at 2.2 GHz and 4x Cortex-A53 cores at 1.8 GHz, it offers 6 TOPS of NPU and advanced 3D GPU performance for AI and multimedia applications.

  • Comprehensive Connectivity

    • Equipped with 2x USB 3.0, 2x Gigabit Ethernet, WiFi/Bluetooth, and 4G LTE (optional), it ensures fast and flexible data transfer and communication for edge devices.

  • 4K Display and Audio Support

    • Supports HDMI 2.0 (4K@120Hz) and Mini DP (4K@60Hz), making it ideal for high-resolution display output. It also features audio input/output capabilities for multimedia applications.

  • Rugged and Fanless Design

    • Built to withstand industrial environments, the MYD-LR3576-B offers reliable performance in temperatures from 0°C to 70°C with a fanless design that ensures silent operation.

  • Comprehensive Software Suite

    • Pre-installed with Linux, Debian, and Android OS, and a full suite of drivers and kernel source code for custom development, making it easy to integrate into various industrial applications.

  • Expandable and Customizable

    • Supports LVDS and MIPI DSI display interfaces, as well as MIPI CSI for camera connections, with a Micro SD card slot for expandable storage.

  • Cost-Effective Solution

    • Starting at USD 175, the MYD-LR3576-B IPC Box offers excellent value for industrial AI applications, ensuring high performance at an affordable price.

General Features

  • Processor: Rockchip RK3576, Octa-core (4x Cortex-A72 @ 2.2GHz, 4x Cortex-A53 @ 1.8GHz)

  • Memory: 8GB LPDDR4X

  • Storage: 64GB eMMC, 32Kbit EEPROM, MicroSD card slot

  • Power Supply: 12V DC, 3A

  • Operating Temperature: 0°C to 70°C (Industrial grade)

Connectivity

  • Ethernet: 2x 10/100/1000Mbps Gigabit Ethernet

  • USB: 2x USB 3.0 Host

  • Wireless: WiFi/Bluetooth (supports BT 5.0)

  • 4G LTE: Optional Quectel EC200MCNLF-I03-MN0CA module (via USB)

  • Serial Ports: USB-UART Debug, 2x RS232, 2x RS485

  • CAN: 2x CAN Bus

  • I/O: 2x Digital Inputs, 2x Digital Outputs

Display & Audio

  • Display Output:

    • HDMI 2.0 (Supports 4K@120Hz)

    • Mini DisplayPort (Supports 4K@60Hz)

  • Audio: 3.5mm audio jack (input/output)

Software & Drivers

  • Operating Systems: Linux, Debian, Android

  • AI Frameworks: TensorFlow, Keras, PyTorch, ONNX

  • Drivers: Full suite including USB, Ethernet, Audio, WiFi, CAN, LVDS, GPIO, and MIPI drivers

  • Source Code: u-boot, Linux kernel, and driver source code

Physical Characteristics

  • Dimensions: 170mm x 93.5mm x 34.5mm (with mounting bracket)

  • Certifications: CE, FCC
